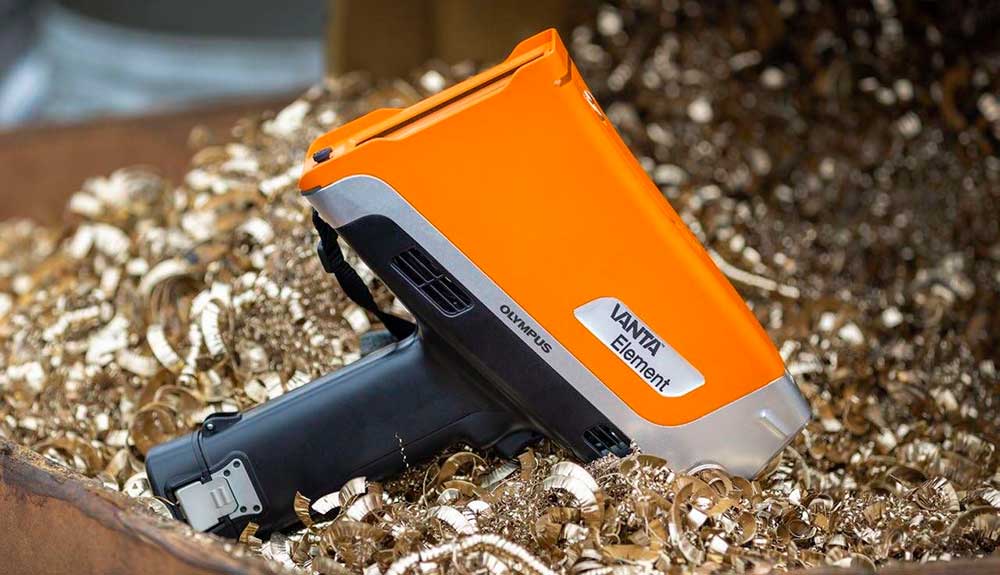

The Vanta Element XRF analyzer series has the performance and portability you need for fast scrap sorting or metal ID. Both the Vanta Element and Vanta Element-S models offer fast grade identification with clear on-screen grade comparisons for easy operation when testing metals. The Vanta Element series is our family of entry-level, cost-effective handheld XRF analyzers. Choose the Olympus Vanta Element analyzer for alloy ID or the Olympus Vanta S analyzer for fast light element analysis at an affordable price.

Vanta Element-S

• Stainless Steel
• Copper Alloys
• Low-Alloy Steel
• Nickel Alloys
• Titanium Alloys
• Aluminum Alloys
• Precious Metals
• Light Element Analysis (Mg, Al, Si, S, and P)

The Vanta Element handheld X-ray fluorescence (XRF) analyzer provides elemental analysis for alloy grade identification and sorting in as little as one second. Easy to operate, the Vanta Element analyzer’s clear, fast grade ID and on-screen grade comparison help speed up metal testing for scrap sorting and metal manufacturing. The analyzer’s smartphone-like user interface helps increase efficiency and throughput with features like on-screen grade comparison, sorting instructions, and identifying contaminants or the presence of residual elements that can compromise value and quality. Easy to use and easy to learn, the software helps reduce user training and streamlines the sorting process.

The Vanta Element-S handheld X-ray fluorescence (XRF) analyzer delivers fast light element detection at an affordable price, joining a family of cost-effective, entry-level Vanta Element XRF instruments. The S model is equipped with a silicon drift detector (SDD) to analyze light elements like magnesium (Mg), aluminum (Al), silicon (Si), sulfur (S) and phosphorus (P) in alloys.

Ideal for scrap recycling, basic PMI, metal manufacturing and precious metals, the Vanta Element-S effectively measures ferrous metals, aluminum, copper, stainless steel, nickel and gold karats. The analyzer offers clear on-screen grade ID and comparison for the light elements Mg, Al and Si in seconds. Its SDD detector can distinguish similar alloy grades like 303 stainless steel from 304, and aluminum 6061 or 6063 from 1100.

The Vanta Element alloy database includes the most commonly used alloys in scrap recycling and manufacturing, but is easily customized for proprietary or additional grades.

• Non-ferrous alloys
• Low-alloy steels
• Copper alloys
• Nickel and high-temp alloys
• Precious metals
• Aluminum alloys

The Vanta Element analyzer includes connectivity features to help streamline your quality control process.

Powerful Processing
• Vanta electronics
• Axon Technology™ stability and count rate

Convenient Data Management
• Wireless data transfer to a network folder (optional)
• Cloud data storage and real-time remote data viewing using the Olympus Scientific Cloud
• Direct export to a USB drive
• 1 GB microSD card for storing results

Built for harsh and demanding environments, the Vanta Element analyzer delivers a lower cost of ownership:

• IP54 rated for protection against dust and moisture
• Drop tested (MIL-STD-810G) to protect against falls and reduce the need for costly repairs
• Rated for continuous testing from −10 °C to 45 °C (14 °F to 113 °F)
• Stainless-steel faceplate for wear protection
• Tough, thick (50 μm) Kapton window protects the analyzer
• Easy, toolless window replacement

Applications :

• RoHS local/international compliance
• Car catalyst recycling.
• Scan for precious metals – alloy chemistry & karat classification for gold, silver, platinum, rhodium
• Manufacturing quality control
• Jewelry analysis
• Mining grade control & geochemical exploration
• Recycling & scrap sorting
